Product Details:
|
| Features: | Simple, Low Cost, Suitable | Shaping Mode: | CNC Machining |
|---|---|---|---|
| Mould Material: | Aluminium | Plastic Material: | LLDPE MDPE HDPE |
| Design Software: | PROE.UG.CAD.Soldworks | Mould Life: | Over 100000 Times |
| Color And Size: | Customized | Supply Ability: | 100 Set/Sets Per Month |
| Business Type: | Manufacturer | Thinkness: | 8-10 Mm |
| Surface Treatment: | Polishing,Sand Blasting,Mirror | Product Name: | Playground Mould |
| High Light: | 8mm Rotational Molding Mold,SGS Rotational Molding Mold,Playground Slide rotomoulding mold |
||
Rotational moulding is a high temperature, low volume, low pressure thermoplastic forming process. It mainly suite for producing
hollow, one piece parts such as large oil or chemical tanks, kayaks, point of purchase displays, frames, cases, furniture, carts,
dispensers, park equipment. The material can be UV resistant which can ensure the outdoor use of your products. It's important to note that the complexity, size, and material selection of rotational molding molds can vary based on the specific application and requirements. Consulting with mold manufacturers or experts in rotational molding can provide more detailed information based on your specific needs.
1. Product Name

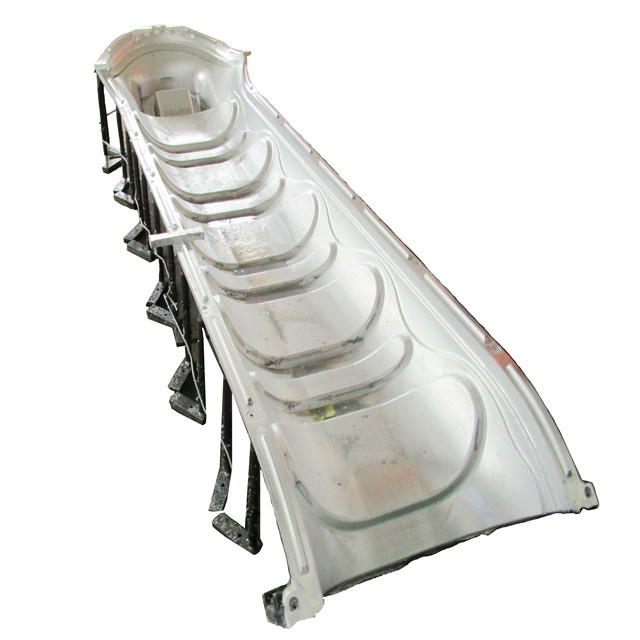

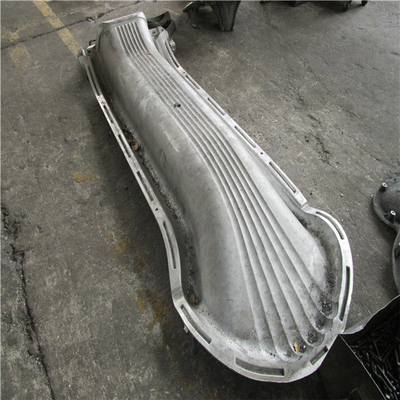

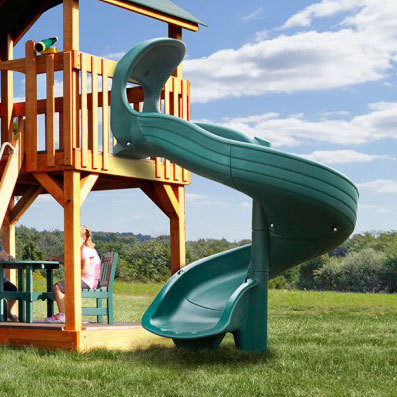

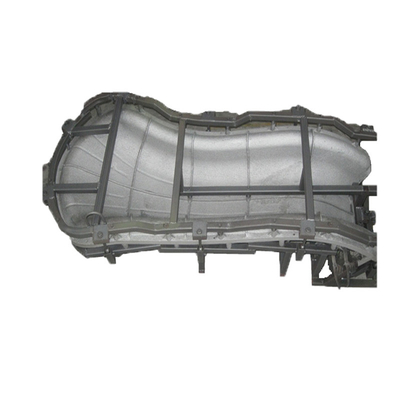

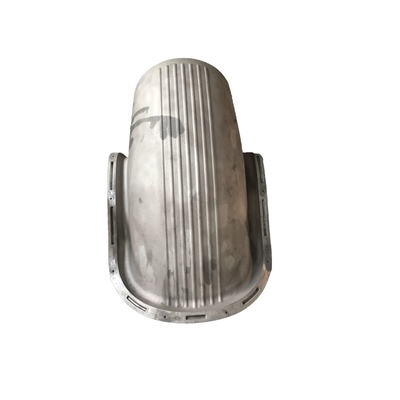

playground rotational mold, Rotomolding Playground Equipment Aluminum Mold
2. Material
aluminum A356, aluminum 6061t6( aluminum block)
3. Surface treatment
Polish, Sandblasting,
4. Wall thickness
8-10mm
5. Mould life
10000 shots
6. Mould Process
Design, foam, casting, CNC process, Polish, Frame, Test, Packing
7. Plastic Material
LLDPE, MDPE, HDPE, CROSS LINKED PE
Our service
help you design with our professional experience for rotational mold
Product Parameter
| Shaping type | Rotomolding mold |
| Mould material | Aluminum A356/Wrought aluminum |
| Product material | LLDPE/HDPE/LDPE/MDPE mixing powder or modified powder |
| Mould thickness | 8mm-12mm Customized |
| Product wall thickness | 4mm-8mm Customized |
| Mold making technology | Die casting and CNC |
| Design Software | CAD/UG etc. |
| Surface treatment | Mirror/Sandblasting/Gloosy |

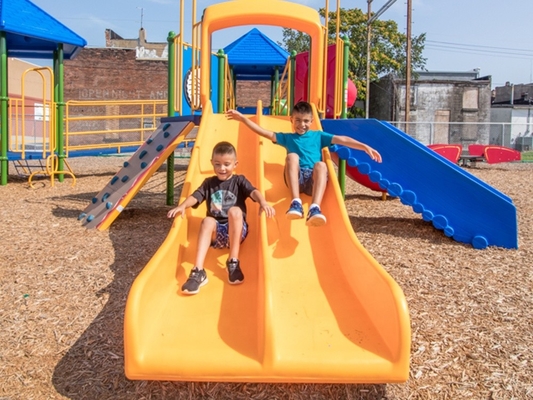

| Application | playground mould |
| Work Flow | Drawing confirmed→mold design→mold making→manufacture |
| MOQ |
1. Mold 1piece MOQ 2. Plastic product : a. custom mold then without MOQ b. customer supply mold 50pieces MOQ |
MORE DETAILS
|
ODM Mould / Tooling
|
|
|
Mould Material
|
Aluminium
|
|
Surface Treatment
|
Polishing, Dull polishing, Sandblasting, Telfon, Coating
|
|
Wall Thickness
|
10mm
|
|
Mould size
|
Customized
|
|
Mould Process |
Drawing file (Or product sample)--mould drawing design-aluminum material-CNC machining process-parts assemble-checking-surface
finishing--test-packing |
|
Packing
|
Wooden case
|
|
Our service
|
3D design , mould making , rotomolding products production
|
|
ODM Products
|
|
|
Products Material
|
LLDPE/MDPE/HDPE/Cross Linked PE
|
|
Colors
|
Nature or Customized
|
|
Product Process
|
Feed metarials into mould-rotomolding heating-cooling-products removal from mould
|
|
Thickness
|
1.5mm-20mm as requirements
|
|
Packing
|
Carton pallets
|
Detail steps introduction:
step1: Cutting foam according to drawing
step2: According to the 3D drawing make foam mould by CNC machine
step3: Die casting on foam mould make original mould
step4: Drawing size lines and adding pillar for supporting and fixing
step5: CNC precision process
step6: Polishing welding surface process etc for mould
step7: Make mould frame

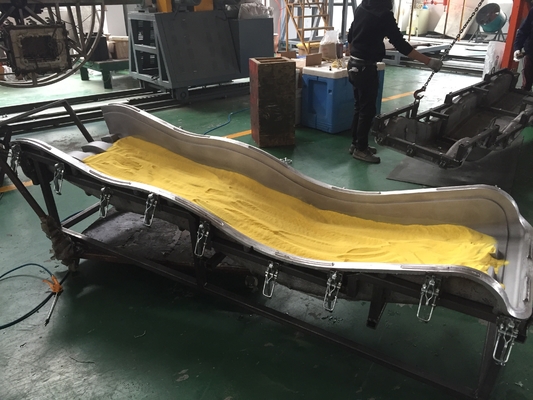

step8: Adding raw material PE into the mould by equality
step9: Rotating therforming by rotational molding machine
step10: Demold
1. High quality rotomolding plastic mold maker
2. Strict quality inspection before shipping
|
ODM Products
|
|
|
Products Material
|
LDPE/MDPE/HDPE/Cross Linked PE
|
|
Colors
|
Nature or Customized
|
|
Product Process
|
Feed metarials into mould-rotomolding heating-cooling-products removal from mould
|
|
Thickness
|
1.5mm-20mm as requirements
|
|
Packing
|
Carton pallets
|
|
Feature: The mold simple to complex , low cost, suitable for molding large plastic products
Application : cleaning machine shells, scrubber, lighting products, water tanks, fuel tanks, insulation cooler box, militaryboxes, plastic furniture, kayak boat, vehicle, planter, toys and so on |
|

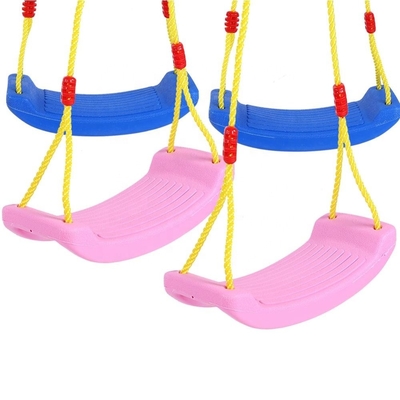

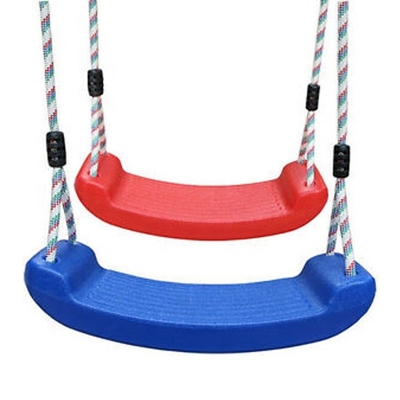

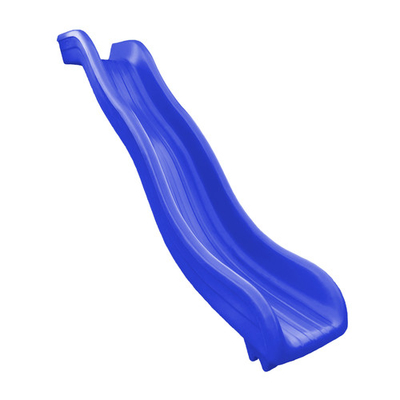

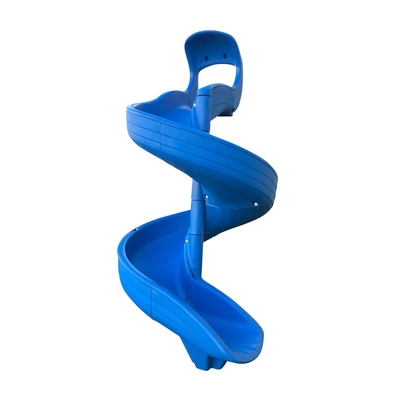

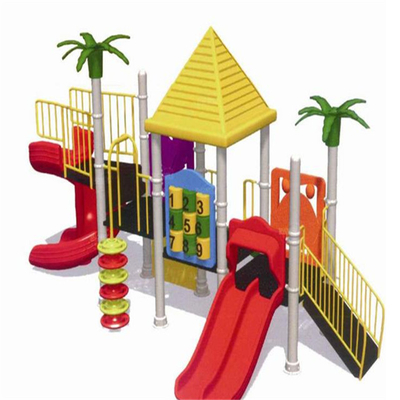

MORE OEM&ODM PRODUCTS WE CAN PRODUCE
Rotomolded products advantages:
1. Strong, durable and lightweight virtually stress-free moulding's
2. Design flexibility - small to large, simple or complex
3. Economic start up costs
4. Hollow one piece mouldings, no welds or joints to fail
5. Uniform wall thickness with no thinning at the extremities
6. Thickness and weight can be varied for extra strength requirements
7. Variety of colours and surface finishes available
8. Metal inserts moulded as a integral part
9. Short lead times
10. Cost effective for short runs
11. Environmentally responsible, all products can be recycled by us and we can make products from recycled material
12. UV stabilised to maximise outdoor life
13. Will not splinter, rust or corrode
14. Tailor made resins such as flame retardant polyethylene
15. Products can be easily repaired
16. Text, logos, inserts, foam, electronic tags, threaded outlets and handles can be included
17. Smooth, easy clean surfaces that can be pressure or steam washed with detergents
PRODUCTION LINE
OUR EQUIPMENT
PACKING DETAILS
FAQ
Q1: What's your company's main products?
Our company is specialized in producing the rotational molding moulds and rotational products. We have insulated food pan carriers, insulated box, insulated soup barrel, cooler box, dish caddy, ice caddy and tool box available to sell. We can also customized all kinds of rotomoulding products according to your requirements or 3D design drawing.
Q2: What is your payment terms?
If mould: 50% deposit in advance ,50% before shipment
If product: 30% before shipment, balance should be paid before delivery
Q3: What is your delivery time?
The delivery time is around 15-30 days after receipt of payment.
Q4: How can I place order ?
Sign contract-- Pay deposit-- Production--Pay left balance--loading -- Delivery
Q5: What information should I let you know if I want to get a quotation?
If mould:
Please send us some pictures and designs for checking. lf you only have product pictures.we can design the drawing.
Product:
1. Please send us some pictures or drawing to checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
2. lf the quantity is large enough. we will make the mould based on your requirements, then produce for you. Otherwise, you have to bear the cost of the mould by yourself.
Q6: Are you willing to send sample for me?
Of course. If you decide to make a new mould in our factory, we can offer you one piece of free sample, but the freight is
collected.
Q7: Is it possible to visit your factory?
Our company is located in Fengxian district,Shanghai,China. It is very convenient to visit us, and all clients from all over the
world are highly welcome to us. We warmly look forward to your visiting!
