Product Details:
|
| Product Name: | Army Case Waterproof Plastic Rotational Mould | Supply Ability: | 400 Case/Cases Per Month |
|---|---|---|---|
| Lead Time: | 35days | MOQ: | 1set Mould |
| Shaping Model: | Rotomolding ,rotational Moulding | Wall Thickness Of Product: | 4mm-6mm,customized Thickness |
| Wall Thickness Of Mould: | 8-10mm | Mould Treatment: | Polishing ,Sandblast,corrosion Texture Etc. |
| High Light: | Waterproof military transport box,Rotomoulded military transport box,LLDPE army transport case |
||

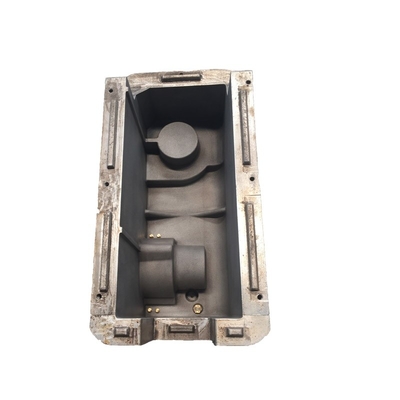

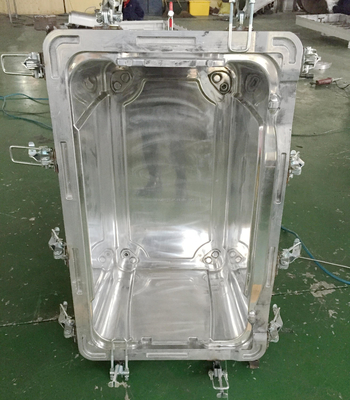

Army Case Waterproof Plastic Rotational Mould, Military Transport Box Military Case Rotational Molding Mold
Rotational moulding, known also as rotomolding or rotocasting, is a process for manufacturing hollow plastic products. For certain types of liquid vinyls, the term slush molding is also used. Rotational molding has particular advantages in terms of relatively low levels of residual stresses and inexpensive molds. Rotational molding also has few competitors for the production of large (> 2 m3) hollow objects in one piece. Rotational molding is best known for the manufacture of tanks but it can also be used to make complex medical products, toys, leisure craft, and highly aesthetic point-of-sale products.
Material: The tool box is made from high-quality, impact-resistant plastic, such as polyethylene. This material offers excellent strength and durability, capable of withstanding harsh conditions, extreme temperatures, and rough handling.
Construction: The rotomolding process ensures a uniform wall thickness throughout the tool box, providing structural integrity and resistance to impact. The box is molded as a single piece without any seams or joints, which makes it highly resistant to water, dust, and other environmental elements.
Size and Dimensions: Military tool boxes come in various sizes to accommodate different equipment and tools. They are typically rectangular or square-shaped and available in different lengths, widths, and heights. The dimensions can range from small handheld boxes to large cases capable of storing bulky items.
Lid and Closure: The tool box features a secure and watertight lid that tightly seals the contents. It may have recessed latches, heavy-duty metal or plastic hinges, and reinforced corners to prevent any damage during transportation or rough handling.
Interior Organization: To enhance functionality, the tool box often includes compartments, dividers, and customizable foam inserts. These features help organize and protect tools, equipment, and sensitive items, preventing them from shifting or getting damaged during transit.
Product Parameter
|
Shaping type |
Rotomolding mold |
|
Mould material |
Aluminum A356/Wrought aluminum |
|
Product material |
LLDPE/HDPE/LDPE/MDPE mixing powder or modified powder |
|
Mould thickness |
8mm-12mm Customized |
|
Product wall thickness |
4mm-8mm Customized |
|
Mold making technology |
Die casting and CNC |
|
Design Software |
CAD/UG etc. |
|
Surface treatment |
Teflon/Mirror/Sandblasting/Gloosy |
|
Application |
Case&box |
|
Work Flow |
Drawing confirmed→mold design→mold making→manufacture |
|
MOQ |
1.Mold 1piece MOQ 2.Plastic product : a. custom mold then without MOQ b.customer supply mold 50pieces MOQ |
Feature: The mold simple to complex , low cost, suitable for molding large plastic products
Application : cleaning machine shells, scrubber, lighting products, water tanks, fuel tanks, insulation cooler box, military
boxes, plastic furniture, kayak boat, vehicle, planter, toys OEM Aluminum Rotomolding Case And Lid Mould, Military Storage Box Mould, Army Case Waterproof Plastic Rotational Mould, Military Transport Box Military Case Rotational Molding Mold and so on
Mould Processing
Rotomoding
Our company has 10 years of mold production experience, most of our products are sold to Europe and the United States, from design to transportation are guaranteed, R&D department staff experience more than 10 years, quality assurance.
1. High quality rotomolding plastic mold maker
2. Strict quality inspection before shipping
Rotational moulding is a high temperature, low volume, low pressure thermoplastic forming process. It mainly suite for producing
hollow, one piece parts such as large oil or chemical tanks, kayaks, point of purchase displays, frames, cases, furniture, carts,
dispensers, park equipment. The material can be UV resistant which can ensure the outdoor use of your products.
Rotomolded products advantages:
1. Strong, durable and lightweight virtually stress-free moulding's
2. Design flexibility - small to large, simple or complex
3. Economic start up costs
4. Hollow one piece mouldings, no welds or joints to fail
5. Uniform wall thickness with no thinning at the extremities
6. Thickness and weight can be varied for extra strength requirements
7. Variety of colours and surface finishes available
8. Metal inserts moulded as a integral part
9. Short lead times
10. Cost effective for short runs
11. Environmentally responsible, all products can be recycled by us and we can make products from recycled material
12. UV stabilised to maximise outdoor life
13. Will not splinter, rust or corrode
14. Tailor made resins such as flame retardant polyethylene
15. Products can be easily repaired
16. Text, logos, inserts, foam, electronic tags, threaded outlets and handles can be included
17. Smooth, easy clean surfaces that can be pressure or steam washed with detergents
OUR EQUIPMENT
PACKING DETAILS
FAQ
Q1: What's your company's main products?
Our company is specialized in producing the rotational molding moulds and rotational products. We have insulated food pan carriers, insulated box, insulated soup barrel, cooler box, dish caddy, ice caddy and tool box available to sell. We can also customized all kinds of rotomoulding products according to your requirements or 3D design drawing.
Q2: What is your payment terms?
If mould: 50% deposit in advance ,50% before shipment
If product: 30% before shipment, balance should be paid before delivery
Q3: What is your delivery time?
The delivery time is around 15-30 days after receipt of payment.
Q4: How can I place order ?
Sign contract-- Pay deposit-- Production--Pay left balance--loading -- Delivery
Q5: What information should I let you know if I want to get a quotation?
If mould:
Please send us some pictures and designs for checking. lf you only have product pictures.we can design the drawing.
Product:
1. Please send us some pictures or drawing to checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
2. lf the quantity is large enough. we will make the mould based on your requirements, then produce for you. Otherwise, you have to bear the cost of the mould by yourself.
Q6: Are you willing to send sample for me?
Of course. If you decide to make a new mould in our factory, we can offer you one piece of free sample, but the freight is
collected.
Q7: Is it possible to visit your factory?
Our company is located in Fengxian district,Shanghai,China. It is very convenient to visit us, and all clients from all over the
world are highly welcome to us. We warmly look forward to your visiting!
