Front-Loading Insulated Food Carrier 90L Rotomolded Thermal Box Four Casters GN Pan Storage 635x460x640mm

This front-loading insulated food carrier is the workhorse format for high-volume catering: a 90L rotomolded cabinet whose entire front face opens as a door, so pans are loaded and unloaded straight from a trolley instead of being lifted over a top lid. That single design decision changes the ergonomics of a service line, because a kitchen porter can slide a full GN 1/1 pan in at waist height, close the latches with one hand and wheel the carrier away, cutting both loading time and the risk of spillage or back strain.

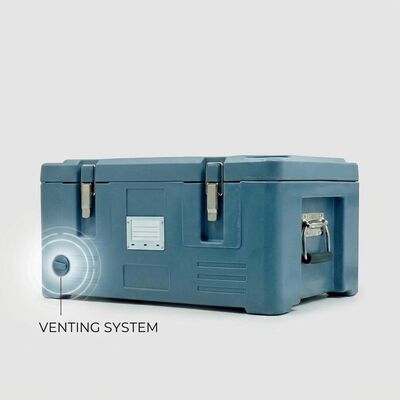

The body is rotationally moulded in food-grade LLDPE as one seamless piece, then filled with 30 mm of high-density polyurethane foam. There is no metal frame to rust, no weld to crack and no liner to delaminate, which is why the format is preferred in wash-down environments such as hospital kitchens, ship galleys and food factories. Thermal performance is passive and repeatable: pre-heat the cavity with hot water for ten minutes and the carrier will hold a full load above 60 C for four to six hours, or hold chilled product below 5 C when pre-chilled. A vent cap manages steam and pressure, the door is detachable for cleaning, and four swivel casters with two brakes keep the unit stable when it is parked on a slope.

• True Front-Loading Access: The whole front panel opens on dual hinges, giving direct horizontal access to all GN pan positions, so full pans are slid in from a trolley instead of lifted from above.

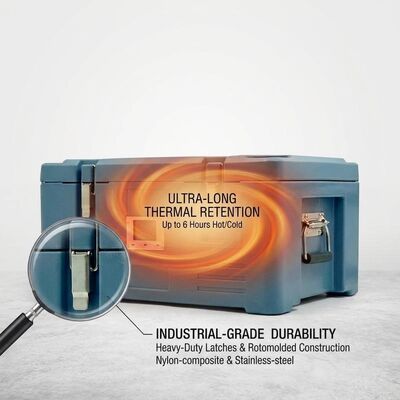

• Passive Hot and Cold Holding: A 30 mm PU foam wall delivers a 4 to 6 hour hold above 60 C or below 5 C with no electricity, no thermostat and no service cable to trip over.
• Rotomolded Structural Strength: The seamless LLDPE shell absorbs impact from trolley corners and loading dock edges, and unlike metal cabinets it will not corrode in humid or salty air.
• Detachable Door and Gasket: Hinges release without tools, the gasket lifts out of its channel, and the smooth interior can be pressure-washed between hot and cold duties.
• Stable Four-Caster Platform: Four 100 mm swivel casters, two with brakes, carry a 14.5 kg gross load across thresholds, lift floors and ramp gradients with a single operator.
• Stackable and Storage Friendly: Identical footprint across the range allows carriers to be parked two abreast in a cold room or stacked in an empty state to free up floor space.

Front-loading carriers are the standard choice for banquet operations running simultaneous hot and cold lines, for hospital and care-home meal distribution where staff work alone, for ship and offshore galleys with limited lifting space, for dark kitchens and food factories moving batches between processing rooms, and for event crews that load a van from the rear doors. The horizontal loading action is also preferred by airline and rail caterers, who dock the carrier directly against a trolley bay and transfer pans without lifting them above shoulder height.

Packing is one piece per PE bag with edge protection inside a five-layer carton of 645 x 465 x 645 mm, 14.5 kg gross, roughly 120 pieces per 20GP and 300 pieces per 40HQ. SHANGHAI TOPGREEN INDUSTRIAL CO., LTD manufactures the carrier in its own rotomolding plant, controlling the mould, the foam density and the hardware in one facility rather than assembling bought-in parts. Quality control covers wall thickness measurement at four points, a foam density check, a door latch cycle test, a loaded roll test on a 3 degree ramp, a cooling-curve verification with a data logger, and a final carton drop test. One-year warranty applies to shell, hardware and casters, and a full spare-parts kit is available. Custom colours, embossed logos, front panel branding and customer-specified carton printing are offered for OEM programmes, and container mixing with other insulated models can be arranged to optimise freight.
