Insulated Food Delivery Box 120L Commercial Hot Meal Transport Carrier PE Rotomolded GN Pan Cabinet 610x420x800mm

The 120 litre insulated food delivery box exists because delivery economics changed: a restaurant group running forty orders an hour cannot afford to send three 90 litre boxes where one 120 litre box will do. This cabinet carries eight 65 mm full-size GN pans, or four deep 150 mm pans, in a single load, keeping hot food above 60 C for up to six hours and chilled product below 5 C once the cavity is pre-chilled. There is no power cable, no heating element and no battery, so the box works identically in a van, on a scooter trailer, at a loading dock or in a stairwell.

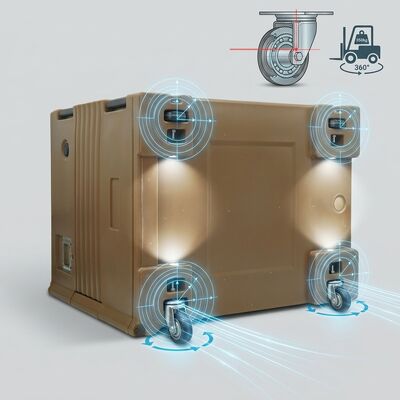

It is deliberately tall and narrow: 610 x 420 mm of floor footprint against 800 mm of height, which is the shape that fits a delivery van aisle without blocking the side door. The front door folds flat through 270 degrees against the cabinet side, so a driver working alone can slide pans in and out with one hand while holding a phone in the other, and the pop-up vent equalises pressure so the door does not fight the gasket after a hot load cools. Four 100 mm casters, two braked, plus moulded handles at two heights allow either one-person rolling or two-person carrying when the floor is bad.

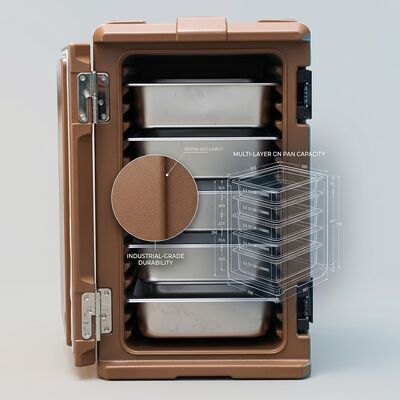

• Thirty Percent More Load per Trip: A 120L cavity takes eight 65 mm full-size GN pans or four 150 mm deep pans, so one carrier replaces one and a half 90 litre boxes on the same route.
• Tall Narrow Van Footprint: The 610 x 420 mm base and 800 mm height are sized for a delivery van aisle, so the box does not obstruct the sliding door or block other orders.
• Six Hour Passive Holding: Thirty millimetres of PU foam and a compressed silicone gasket hold hot food above 60 C and chilled food below 5 C for up to six hours with no power source.

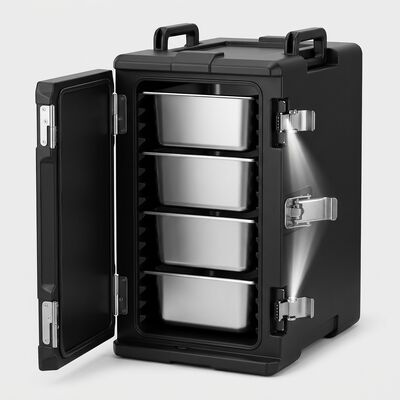

• One-Handed Front Loading: The 270 degree fold-flat door gives straight-line access to every pan position, so a driver can load or unload without a second pair of hands.
• Route-Proof Rotomolded Shell: The seamless LLDPE double wall absorbs kerb drops and tailgate impacts, and moulded caster mounts prevent the wheel-plate failures common on light boxes.

Restaurant chains, dark and cloud kitchens, meal-prep producers, hotel room-service fleets, hospital and care-home meal rounds, office campus canteens, school meal programmes and event caterers use the 120L box where volume per trip is the constraint. It is also specified for institutional bulk deliveries, chilled dessert and dairy runs, grocery meal-kit cold chain and staging before a plating window, and by operators who run a mixed hot and cold menu from one vehicle.

Each unit ships one piece per PE bag with corner protection inside a five-layer export carton, packed at 21 kg gross, with roughly 70 pieces per 20GP and 170 pieces per 40HQ. Mixed containers combining different capacities and other insulated models can be arranged to optimize freight. Production and final inspection are carried out by SHANGHAI TOPGREEN INDUSTRIAL CO., LTD in its own rotational moulding plant, where mould design, foam injection, hardware assembly and export packing are controlled in one facility. Each lot passes a wall thickness audit at four points, a foam density check, a latch cycle test, a loaded roll test, a hot and cold hold verification with a data logger and a packed carton drop test, and the report can be supplied with the shipment. A twelve month warranty applies to the shell, door or lid hardware and casters, with gaskets, latches, vent caps and wheels held as service spares. Custom colours, embossed or printed branding, private-label documentation and customer carton artwork are supported for OEM programmes, and pre-production samples can be dispatched for field trials before a bulk order is released.
