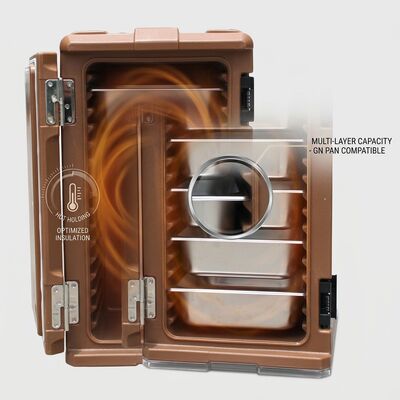

Heavy-Duty Catering Box 120L Rotomolded Insulated Food Transport Cabinet Eight GN Pans Four Casters 610x420x800mm

This heavy-duty catering box is the 120 litre version of a specification written for equipment that is used by many hands and owned by no one in particular: stadium concessions, festival infrastructure, rental fleets, mining and remote-site catering, army field kitchens. The shell is a single rotomolded LLDPE double wall with 30 mm of polyurethane foam in the cavity, and the caster mounts, handle bosses and chute rails are moulded into that shell rather than screwed into it. That one detail is what separates a box that lasts eight years from a box that is re-imported every second season.

At 120 litres the cavity holds eight 65 mm full-size GN pans, or four 150 mm deep pans, so a single unit covers a full service point rather than a single course. Gross weight is 21 kg packed and around 70 kg fully loaded, which is exactly why the caster system matters more here than on a small box: four 100 mm swivel casters, two braked, carry that load across dock plates, cable ramps and temporary flooring. The front door folds flat through 270 degrees, the gasket is replaceable in minutes, and the latches are sized for gloved hands working against a service clock.

• Moulded-In Load Paths: Caster plates, handle bosses and chute rails are formed as part of the rotomolded shell, so the load path runs through solid plastic instead of through screws into a thin panel.
• Eight Pan Capacity: The 120L cavity carries eight 65 mm full-size GN pans or four 150 mm deep pans, covering a complete service point in one container instead of two 90 litre units.
• High-Load Caster System: Four 100 mm swivel casters with two brakes are specified for the roughly 70 kg loaded weight, and each wheel and brake assembly is replaceable without tools.
• Impact-Tolerant Corners: LLDPE flexes and recovers where metal dents and gelcoat cracks, which is what keeps a rental or stadium box serviceable after years of dock-plate abuse.
• Serviceable Wear Parts: Gasket, latches, vent cap and casters are consumables held in stock, so a five year old box returns to full performance instead of being scrapped.

Typical users are stadium and arena concession operators, festival and event infrastructure contractors, equipment rental and hire fleets, industrial and mining site caterers, military and field kitchen units, ship and offshore galleys, and large contract caterers running multiple simultaneous service points. The 120L format is also used by food factories moving batch quantities between hygiene zones, and by central kitchens staging bulk product for satellite outlets.

Each unit ships one piece per PE bag with corner protection inside a five-layer export carton, packed at 21 kg gross, with roughly 70 pieces per 20GP and 170 pieces per 40HQ. Mixed containers combining different capacities and other insulated models can be arranged to optimize freight. Production and final inspection are carried out by SHANGHAI TOPGREEN INDUSTRIAL CO., LTD in its own rotational moulding plant, where mould design, foam injection, hardware assembly and export packing are controlled in one facility. Each lot passes a wall thickness audit at four points, a foam density check, a latch cycle test, a loaded roll test, a hot and cold hold verification with a data logger and a packed carton drop test, and the report can be supplied with the shipment. A twelve month warranty applies to the shell, door or lid hardware and casters, with gaskets, latches, vent caps and wheels held as service spares. Custom colours, embossed or printed branding, private-label documentation and customer carton artwork are supported for OEM programmes, and pre-production samples can be dispatched for field trials before a bulk order is released.
