Front-Loading Insulated Food Carrier 120L Tall Cabinet Eight GN Pans Fold-Flat Door Four Casters 610x420x800mm

The design argument for a front-loading insulated food carrier is ergonomic, and at 120 litres it becomes an occupational health argument as well. Eight full-size GN pans loaded from above into an 800 mm tall cabinet would mean lifting roughly 70 kg of food to head height, pan by pan, several times a shift. Loading from the front changes that: the door folds flat through 270 degrees against the side of the body, the operator slides each pan horizontally into its chute at working height, and the two wide latches close with one hand. What used to take two people and a step takes one person and thirty seconds.

The cabinet itself is a seamless rotomolded LLDPE double wall with 30 mm of high-density polyurethane foam between the skins, so the 120 litre cavity holds hot food above 60 C or chilled food below 5 C for four to six hours with no power supply. Tall and narrow at 610 x 420 x 800 mm, it fits a kitchen pass, a delivery van aisle and a service corridor without needing a second person to steer it. The vent cap releases steam in hot mode and breaks the vacuum in cold mode, which is the detail that keeps both the gasket and the food in good condition.

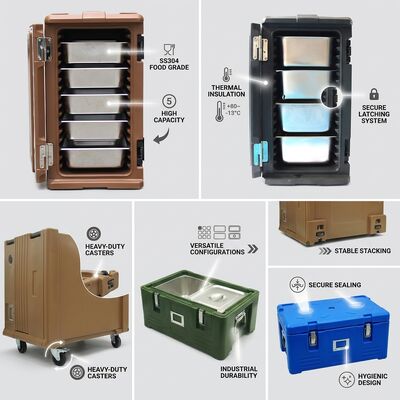

• No Overhead Lifting: Horizontal loading at working height removes the need to lift 70 kg of food to head height, which is the single largest injury risk in high-volume pan handling.
• 270 Degree Fold-Flat Door: The door swings fully back against the cabinet and lifts off its hinges for cleaning, giving unobstructed access to all eight pan positions.
• Tall Narrow Footprint: 610 x 420 mm of floor space against 800 mm of height fits a pass, a service corridor and a van aisle, and steers easily on four casters.
• Six Hour Thermal Hold: A 30 mm PU foam core and a compressed silicone gasket hold hot food above 60 C and cold food below 5 C for four to six hours without any power source.
• Pressure-Balanced Vent: A quarter-turn vent cap releases steam in hot mode and equalises vacuum in cold mode, protecting both the gasket and the texture of the food.

Front-loading 120L cabinets are standard in hotel and conference banqueting, hospital and care-home kitchens, contract catering production units, ship and offshore galleys with limited headroom, airline and rail catering, school and university dining halls, and large restaurant groups running central production kitchens. They are chosen wherever staff work alone, wherever lifting is restricted by policy, and wherever a tall cabinet gives more payload per square metre of floor space.

Each unit ships one piece per PE bag with corner protection inside a five-layer export carton, packed at 21 kg gross, with roughly 70 pieces per 20GP and 170 pieces per 40HQ. Mixed containers combining different capacities and other insulated models can be arranged to optimize freight. Production and final inspection are carried out by SHANGHAI TOPGREEN INDUSTRIAL CO., LTD in its own rotational moulding plant, where mould design, foam injection, hardware assembly and export packing are controlled in one facility. Each lot passes a wall thickness audit at four points, a foam density check, a latch cycle test, a loaded roll test, a hot and cold hold verification with a data logger and a packed carton drop test, and the report can be supplied with the shipment. A twelve month warranty applies to the shell, door or lid hardware and casters, with gaskets, latches, vent caps and wheels held as service spares. Custom colours, embossed or printed branding, private-label documentation and customer carton artwork are supported for OEM programmes, and pre-production samples can be dispatched for field trials before a bulk order is released.
